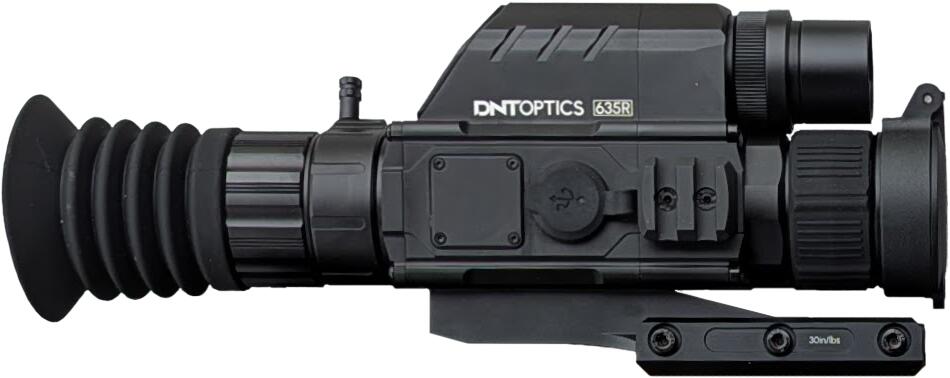

DNT ThermNight TNC635R

Purchased for FN SCAR 17S.

• 0MOA Mount
• 20MOA Mount
• Hex key
• Torx key
• Mounting screws
• 2x 21700 Batteries
• Battery charger
• Cleaning cloth
• Hard Case (fitted foam)
• Manual

Specs from dntoptics.com 2024

Net Weight	724g / 25.6oz
LRF Maximum Measuring Range	5~1100M / 5~1200yds
Ingress Protection	IP67
Dimensions	232x82x78mm / 9.2x3.2x3.0 inches
WIFI/APP	Yes (DNT)
Storage	Bulit-in memory, 64GB
Shock Resistance	800Gs
Operating Temperature	-20~50°C/-4°F~122°F
Display Type	Micro-OLED
Display Resolution	1920x1080 pixels
Display Frame Rate	60Hz
Battery Type	21700 Battery (flat top)
Operating Time	5.5h
External Power Supply	5V - Type C USB
Thermal Sensor Resolution	640x512 pixels
Thermal Sensor Pixel Size	12x12um
Thermal Sensor Image Sensor	Uncooled Infrared Image Sensor
Thermal Sensor NETD	<=18mk@25°C
Thermal Sensor Frame Rate	50FPS
Thermal Sensor Focal Length	35mm
Thermal Sensor Base Magnification	1.5x
Thermal Sensor Digital Zoom	1.5x, 2.25x, 3x, 3.75x, 4.5x, 5.25x, 6x
Visible Sensor Resolution	1920x1080 pixels
Visible Sensor Frame Rate	60Hz
Visible Optical Detection Range	400m
Visible Optical Eye-Relief	65mm
Visible Optical IR Rating	Class 3R Eye Safe
Visible Optical Base Magnification	5x
Visible Optical Diopter Adjustment	+-3D
Visible Optical Digital Zoom	5x, 7.5X, 10X, 12X, 15X, 17.5X, 20X
Visible Optical IR Wavelength	850/940nm
Video Record Resolution	1800x1080 pixels
MSRP	$3,699.99
Mount Type	PMS - Picatinny 0 MOA Short

Overview from dntoptics.com 2024

• Free Shipping
• 3-Year Warranty for TNC635R
• 30-Day Returns
• Free Accessory Pack - 21700 Battery X2 and Battery Charger

See it All You Will Love What You See
The ThermNight Multispectral series of scopes is the culmination of technology to create the perfect aiming solution. It can be used in all weather & lighting conditions. The thermal and night vision combination allows for faster detection of targets and provides high-quality digital image for identification.

• Thermal & Night Vision Combination
• Ballistic Calculator
• Day & Night in All Conditions
• Ultra Compact & Light Weight

High-End Thermal Sensor, Enhanced Visibility
The TNC635R offers a 640 x 512 thermal sensor, delivering superior clarity with a wider field of view (FOV) for easier target detection. Uncooled VOx microbolometers with a 12um pixel pitch, <=18mk@25°C sensitivity, and a 50Hz refresh rate for optimal performance in the field.

Be The Ultimate Predator And See In The Dark With The Sony Starvis 2 Sensor
Utilization of SONY's latest CMOS Starvis2 Technology, as well as ED glass lenses, cutting edge AI imaging algorithms and a world-leading 60Hz 1920x1080 Micro-OLED display ensures the DNT ThermNight to be perfect for day or night.

• Starvis2 SONY Digital Sensor
• Enhanced Algorithm
• 1920x1080 Micro-OLED

Night Vision And Thermal At The Touch of a Button
Switching between thermal and digital channels is as easy as the press of a button, conveniently positioned on the side of the scope. You can also enable Picture-in-Picture so you can see both channels at the same time, saving you time to focus on your target.

Range To Target With Instantaneous Ballistic Solution
Featuring a cutting-edge built-in laser rangefinder, this device provides highly accurate distance measurements from 5 to 1100 yards. Once the range is determined, the onboard ballistic calculator quickly generates a ballistic solution, which is then displayed as either dial-in or holdover corrections, ensuring precision with every shot.

More features

• Thermal ZOOM Lock
• One-shot Zeroing
• Detachable IR llluminator
• Up to 5 hrs Battery Life
• Built-in 64Gb Storage
• Reticles: 8 Styles and 5 Colors
• Precise aiming even in the Picture-In-Picture mode
• Wireless Updates

Markings

IR Lens	IR-850nm
Battery	ThermNight
Range Finder	{DNT logo}
Side	{DNTOPTICS logo} 635R
Bottom	TNCCA100123
	Equipment Name: ThermNight Scope
	Model Name: ThermNight TNC635R
	FCC ID: 2BA4J-TNC635R
	Manufacturer: Pangao Photoelectric
Case	TNCCA100123
	TNC635R
	850065096117

Receipts

Receipt (DNT Optics Store): <redacted>

DNT Optics (dntoptics.com) Dec 26th 2024 Order # DNT7195060
Product	SKU	Qty	Price	Total
TNC635R - ThermNight Thermal & Night Vision Multispectral Scope With Laser Rangefinder And Ballistic Calculator	TNC635R	1	$2,775.00	$2,775.00
Subtotal				$2,775.00
DISCOUNT XMAS				-$277.50
Shipping				$0.00
Tax				$206.05
Total				$2,703.55
