Atlas V8 Bipod BT10-NC

Purchased for FN SCAR 17S. I already had a ADM QD Bipod Base which I had originally purchased for mounting my DNT ThermNight.

• ADM QD Bipod Base

Specs from accu-shot.com 2025

HEIGHT RANGE	5.0 - 9.4"
HEIGHT AT 90º POSITION	6.5"
WEIGHT	10.8 oz
OPTIONAL FEET	YES
MOUNTING OPTIONS	BT19, BT70, ADM-170-S, ARMS17S, LT271, ARCA [none included]
NON- ROTATING LEGS*	NO
FOOTPRINT SPREAD at 90° (approximate)	8-11"
BOX DIMENSIONS	L = 7.09", W = 2.9", D = 1.82"
APEX HEIGHT	.92"
45° LEG POSITION	YES
POSITION BUTTON DIAMETER	0.36"
TOTAL LEG POSITIONS	5
PAN	15°+/- 30° total
CANT	15°+/- 30° total
ADJUSTABLE PAN/CANT TENSION	YES
FORE/AFT LIMITING BOSSES	NO
INNER LEG MATERIAL	6061-T6 Aluminum
COST	$229.95

Overview from accu-shot.com 2025

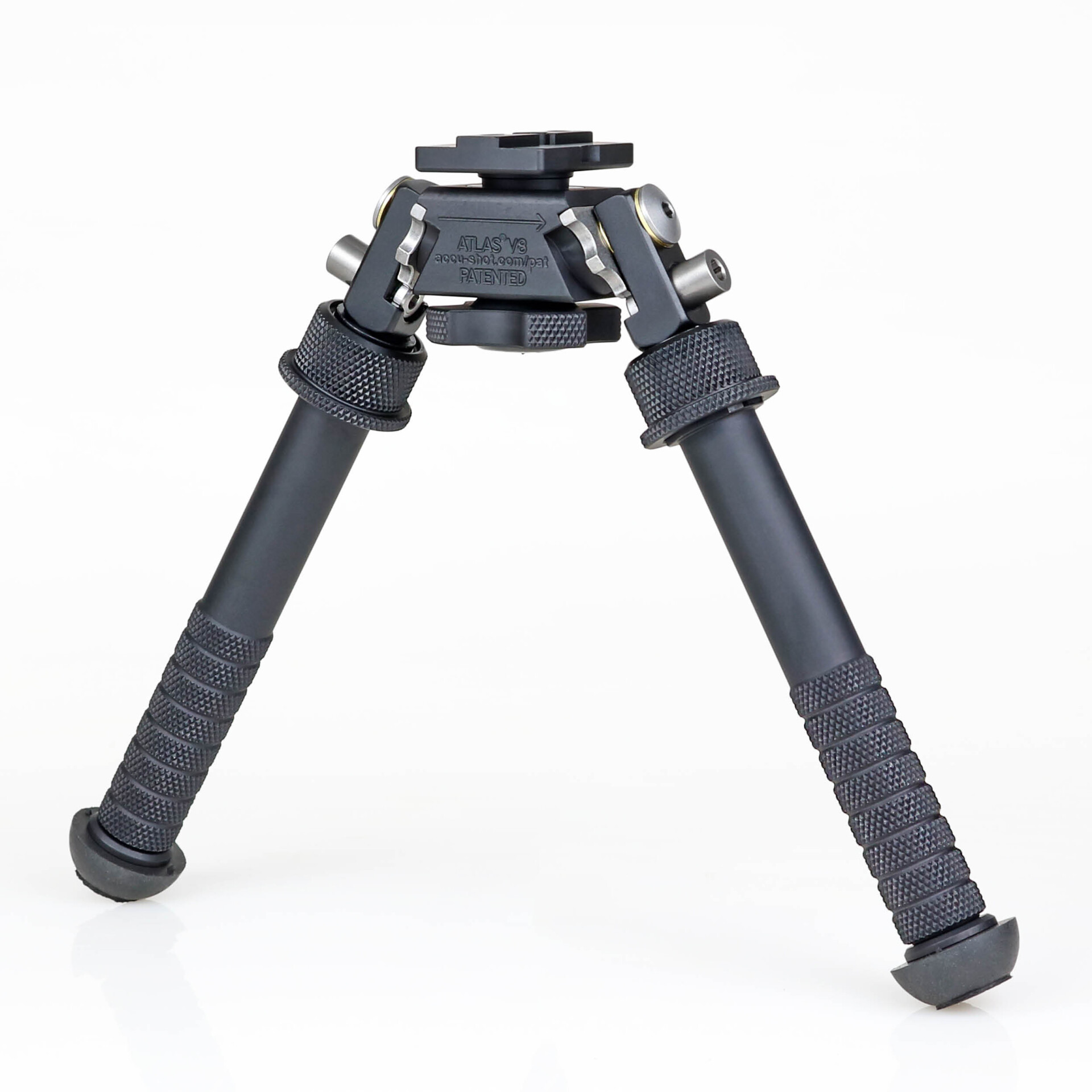

BT10-NC V8 Atlas® Bipod

About the V8 Series: The original Atlas® Bipod that brought the patented Atlas® features of preloaded Pan and Cant with the five independent leg positions - including the patented 45° leg position, height adjustability and quick change feet to the market. Made in the USA.

The BT10-NC model Atlas Bipod is part of our V8 Series. The "NC" stands for "No Clamp," meaning it requires any 17S size mount in order to attach to a firearm. The interface to install a clamp has a two hole pattern of 1.100" with 10/32 threads. It will also mount directly to our BT19 AI Spigot or BT70 M-LOK® Adapter.

See all BT10-NC PLUS variations for compatible clamp options (Picatinny Rail, ARCA Rail, Dual Picatinny and ARCA)
BT10-NC = Atlas Bipod ONLY; No Clamp installed
$229.95

The BT10-NC is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized with heat treated stainless steel components. Includes two 10-32 x 3/83 flathead socket screws. Available in black only.

More Information, Tutorial & Accessories

• NC: No Clamp - Atlas® V8 Series Bipod Video Tutorial
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened using the knurled knob
• No Clamp interface requires 17S size mount or adapter with matching two hole pattern of 1.100" with 10/32 threads
• Recommended torque specification for installation of any mount/adapter: up to 30 inch pounds
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾" apart
• Hold What You Move Technology®
• Includes our Standard Rubber Feet durable and suitable for many surfaces
• Optional Leg Extensions and Adjustable Leg Extensions to increase height
• Optional quick-change feet: Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
• Optional mounting systems available for Accuracy International and Sako rifles

PROUDLY DESIGNED, ENGINEERED, MACHINED & ASSEMBLED IN AMERICA

Receipts

Receipt (Range USA): <redacted>

Range USA (rangeusa.com) Dec 18th 2025 Order # 3336070
Product	SKU	Qty	Price	Total
HuxWrx 7.62mm Suppressor Alignment Rod - 17in	706433763818	1	$34.19	$34.19
Warne 45 Degree Offset Red Dot Mount	656813114108	1	$40.49	$40.49
Rearden Atlas Mount Gen 2 for All Rearden Muzzle Devices HUB	850058579528	1	$56.69	$56.69
LPM Liberty Bell Muzzle Brake 30 Cal 5/8x24 Threads	850062101241	1	$65.69	$65.69
Atlas V8 Bipod - No Mount	810040220098	1	$203.39	$203.39
Leupold DeltaPoint Pro Reflex Sight 2.5 MOA Red Dot	030317005856	1	$248.39	$248.39
Subtotal				$648.84
Shipping				$11.95
Tax				$52.88
Total				$713.67
